Pressure sensor transmitter

World-Class Pressure Sensor Transmitters from PT OCTAGOS WISE SAGESTER

At PT OCTAGOS WISE SAGESTER, our core business operations revolve around the design, engineering, and marketing of top-tier pressure sensor transmitters. We take great pride in assuring our customers that the units, components, and parts we supply are manufactured in strict accordance with International Standards. This compliance extends to purchasing orders and the technical data sourced from related catalogues and approved data sheets/drawings

AFFIDAVIT OF CONFORMANCE(Vendor Certificate)

Specification

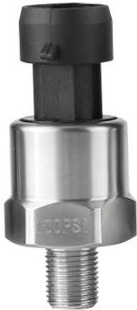

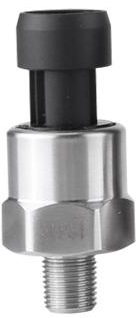

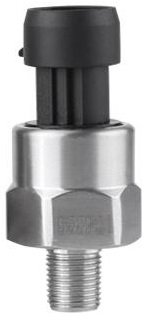

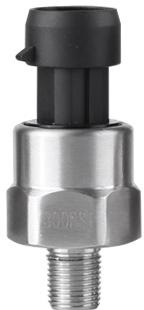

Pressure	Thread	Voltage	Material
30 psi	1/8"-27 NPT.	5v	Stainless steel
100 psi	1/8"-27 NPT.	5v	Stainless steel

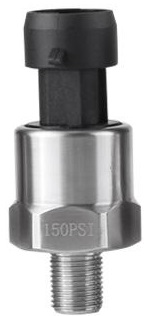

150 psi	1/8"-27 NPT.	5v	Stainless steel

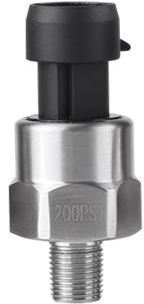

200 psi	1/8"-27 NPT.	5v	Stainless steel
500 psi	1/8"-27 NPT.	5v	Stainless steel

Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel

HS CODES for parts:

90269000 - M266HSHSSBA MT TR P 160 BAR AISI-SIL AISI 1/2 FV(TRANSDUCER)(FOR PRESSURE TRANSMITTER);
90262000 - RESSURE TRANSDUCER MDA462-1/2-3.5C 46/46-M98 3 0462360636M983;
90262000 - PRESSURE TRANSDUCER MDA462 M10 3.5C 15/46 0462700636;
848250 - Radial roller bearings cylindrical parts;
90269000 - NRM7060 P TSD STD 6 BAR AISI SILICONE OIL(TRANSDUCER)(FOR PRESSURE TRANSMITTER);
90262000 - LEVEL TRANSDUCER EQ-PT400-0.5%FS-4/20MA-1/4BSP-DIN IN THE RANGE OF 0/2METER 0/5METER 0/10METER(PRESSURE CHECKLING);

Tolerances

Metric sizes as per ISO 492:2002;
Inch sizes as per AFBMA B3-19;

Internal clearances

Protection Class: IP67
Explosion-proof Class: ExiaTTCT6
Electromagnetism Compatibility: EN50051-1.

Load Resistance

≤ (supply power-6.5V/0.02A)Ω

Long-term stability:

Less than 0.1%FS/year

Temperature Effect on Zero:

Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃

Our company upholds a global ISO 14001 environmental policy, and our manufacturers are approved for Quality Certification in accordance with ISO 9001 and ISO standard

For further inquiries or to explore our range of high-quality pressure sensor transmitters, please don't hesitate to contact us. Your satisfaction and trust are our top priorities.
